Quick Details

  • Place of Origin: Beijing, China (Mainland)
  • Brand Name: winner optics
  • Model Number: WN303RA200S
  • Weight: 23kg

Packaging & Delivery

Packaging Details: carton
Delivery Detail: 20 work days
Product Description

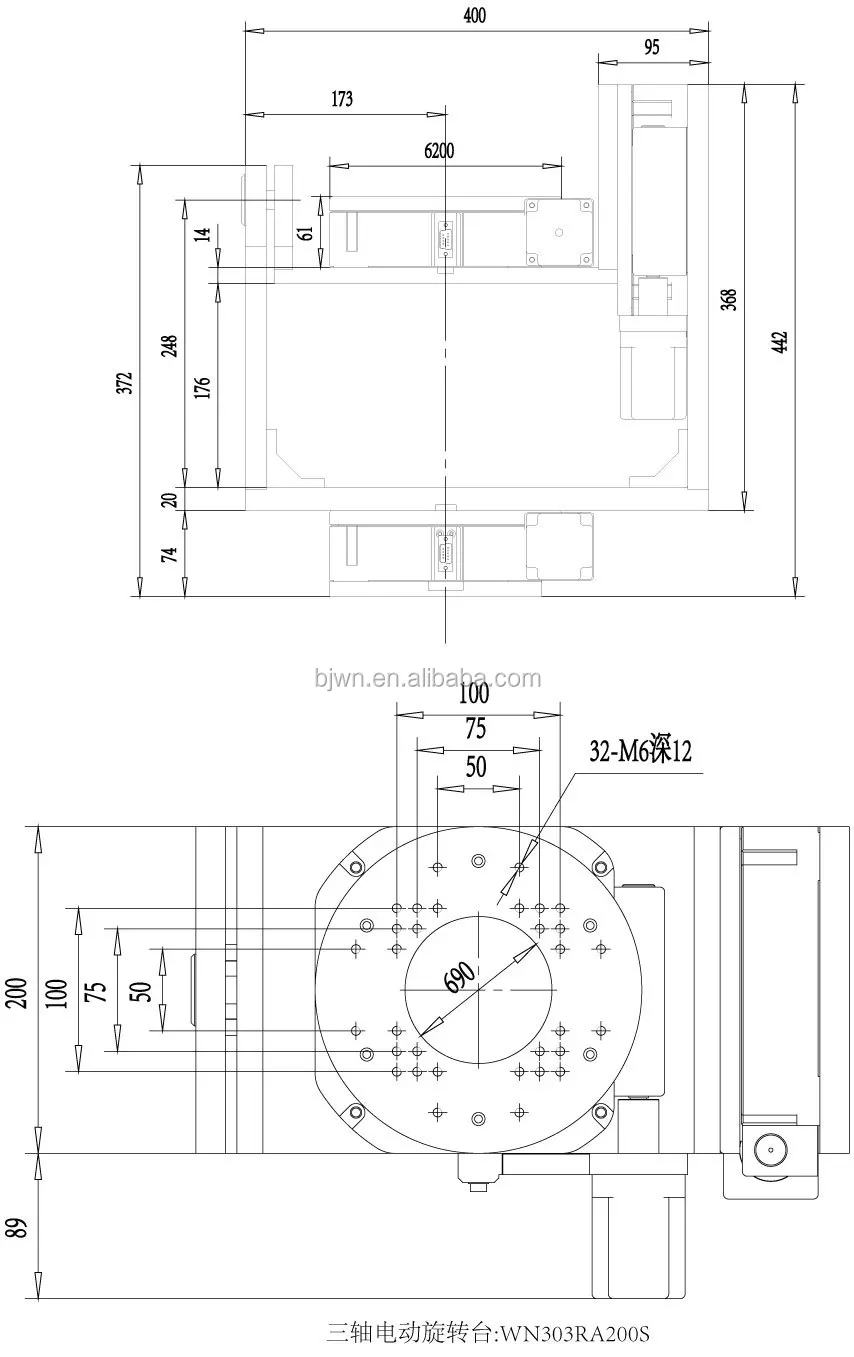

X,Y,Z Arbitrary Angle Motorized Rotary Stage

Model
WN303RA200S
Structure
Description
Rotation Range
Around the X, Y, Z-axis 360 °
Worm Gear Ratio
180/1
Drive Mechanism
Motorized Rotation Stage
Travel Guide
Bearing
Stepper Motor(1.8°)
SST57D3301
Base Material
Aluminum  Alloy
Surface Treatment
Black-Anodized
Center Load Capacity
25kg
Weight
36kg
Accuracy
Resolution
0.01°=36″(Non-MS Driver)
0.0005°=1.8″(20MS Drive)
Speed
10°/sec
Repeatability
0.01°=36″
Mainly Composed Modules:WN03RA200S



















Features:
.Standard stepper motors and RS232 interface.
.Compatible with the Models WNMPC08 Series of Motion Controller
.Rotating shafts using multi-channel technology of precision processing, with high precision, large capacity and long life
. Using precision worm structure , exercise comfortable, forward and reverse rotation can be arbitrary and minimal backlash
